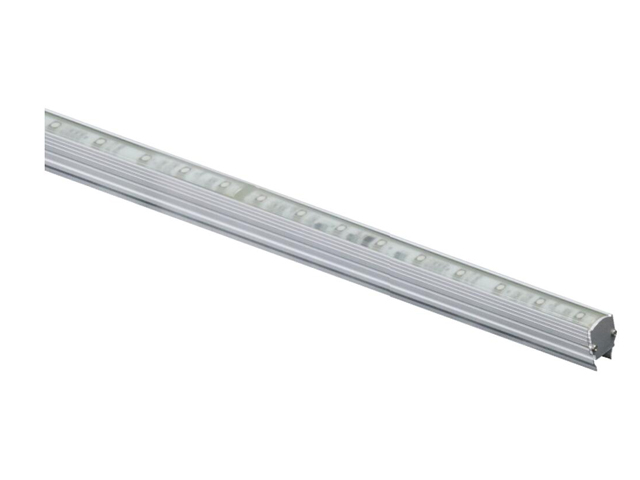

L17 Linear Light

Exquisite appearance, ultra narrow and ultra thin; integration waterproof technology used on the product. Flame retardant grade V-0, IP67, UV resistance, high and low temperature resistance. The lamp is available to be equipped with a special lampshade of anti-glare and uniformity.

Applications

It is mainly used for the outdoor environment like drawing outlines of buildings and bridges of densely populated areas, as well as indoor handrails illumination and other places where the lamps are used at close range. This product can also be used in harsh environments.

technical parameter

01Basic Parameters
Light Color
Monochrome/ RGB
Lifespan
50000h
Material
RPVC
Weight
240g
Angle
120°
02Working conditions
Protection Grade
IP67
Work Temperature
-40℃～55℃
Safety Class
Ⅲ -class
Fire-Retardant Grade
V-0
UV-Resistant Class
4
03Electrical Parameters
Voltage
DC24V
Power
9W/ 12W

Structure size chart

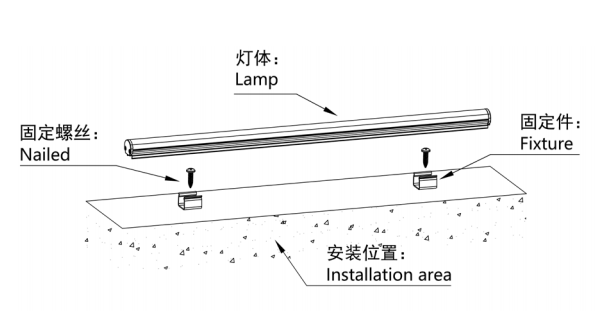

Installation method

Light distribution curve

Other specifications
